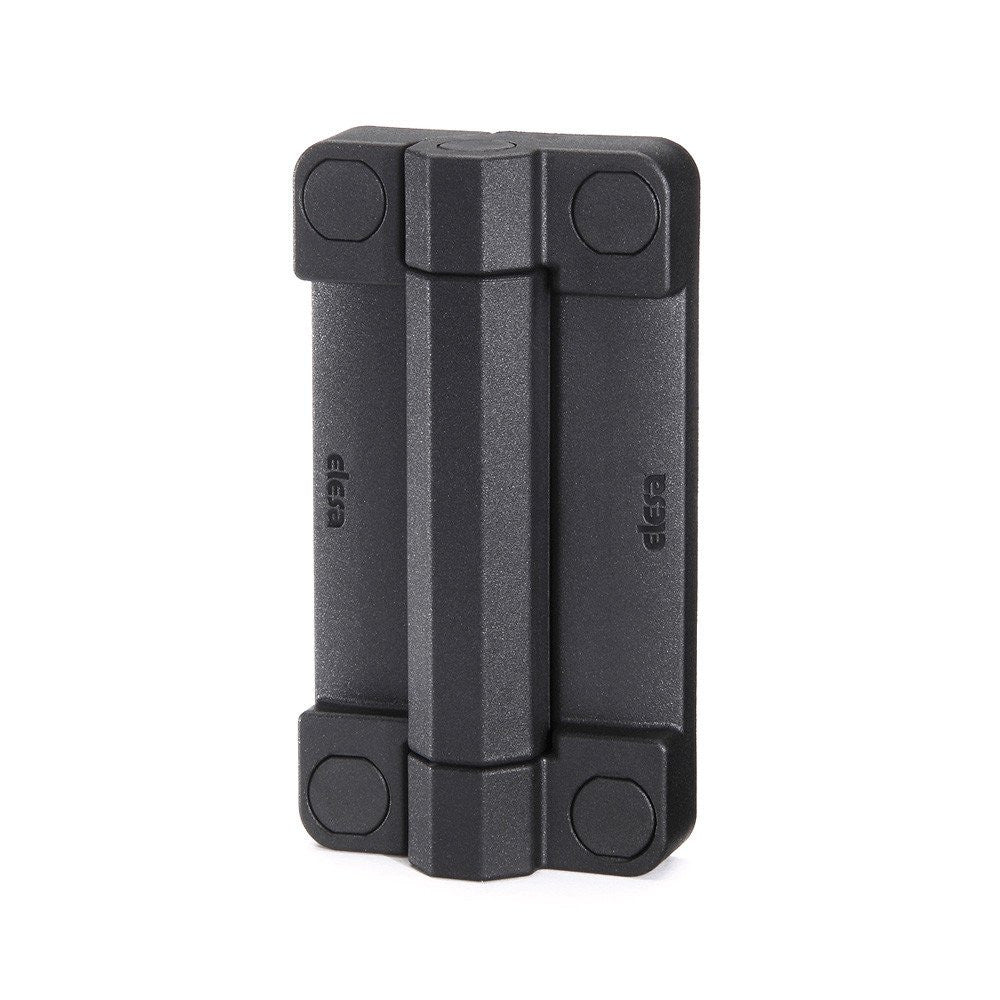

425951 CFMW.70-SH-6 Elesa Hinge

425951 CFMW.70-SH-6 Elesa Hinge

  • $19,822.00

1-2 Weeks


Send Us an Email

Brand: Elesa
Part Number: CFMW.70-SH-6 |425951
Weight: 0.18 lb
Tariff Code: 83017000
Material:

EMKA Made in Italy

Material
Glass-fibre reinforced polyamide based (PA) SUPER-technopolymer. Resistant to solvents, oils, greases and other chemical agents.
Colour
Black, matte finish.
Rotating pin
Glass-fibre reinforced polyamide based (PA) technopolymer, black colour.
Assembly kit (see assembly):
n°4 technopolymer covers (fig.1).
n°4 technopolymer bushings (fig.2 and fig.3).
Mounting
CFMW. hinge can be assembled in three different modes:
With M6 UNI 5933 ISO 10642 countersunk-head screw (not supplied) and screw cover supplied in the kit (fig. 1) to avoid free access to screws.
With cylindrical-head screw with hexagon socket M6 UNI 5931 ISO 4762 (not supplied) to set with the bushing supplied in the kit (fig.2).
With M6 UNI 5588 ISO 4032 nut (not supplied) and the bushing supplied in the kit (fig.3). This kind of assembly makes the hinge totally tamper-proof preventing any tampering.
