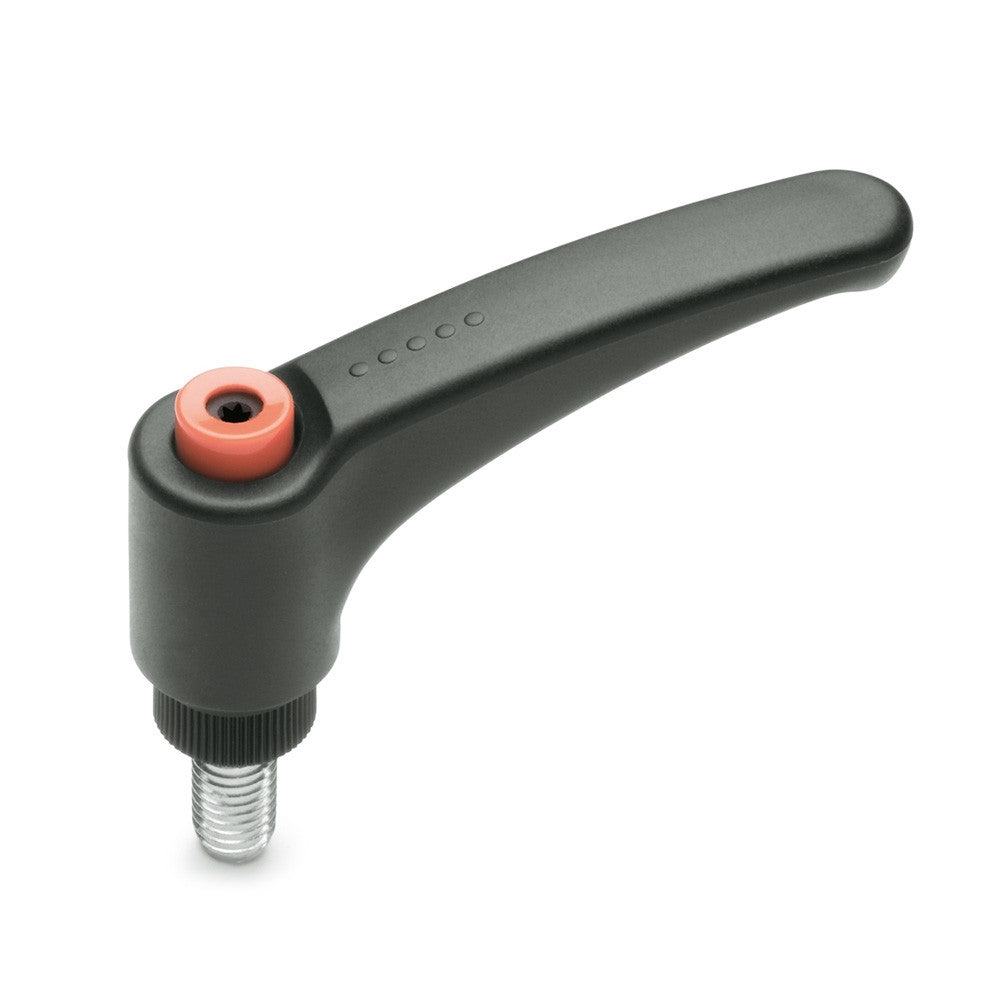

ERX.78-AV-p M10x20-C2 234518-C2 Elesa Quick Assembly Adjustable Handle with Stud Threaded M10
Push Button: Technopolymer RAL 2004 orange color, glossy finish. On request and for sufficient quantities it can be supplied in one of the other Ergostyle colors.
Standard Execution: Glass-fiber reinforced technopolymer clamping element with retaining pin, black color, with knurling on the protruding part to make initial tightening easier. AISI 302 stainless steel return spring.
For quick assembly (ELESA patent) six-lobe socket ISO 10664 to fit TORX® T15 tool (registered trademark of TEXTRON INC.). Zinc-plated steel threaded stud, chamfered flat end UNI 947 : ISO 4753
